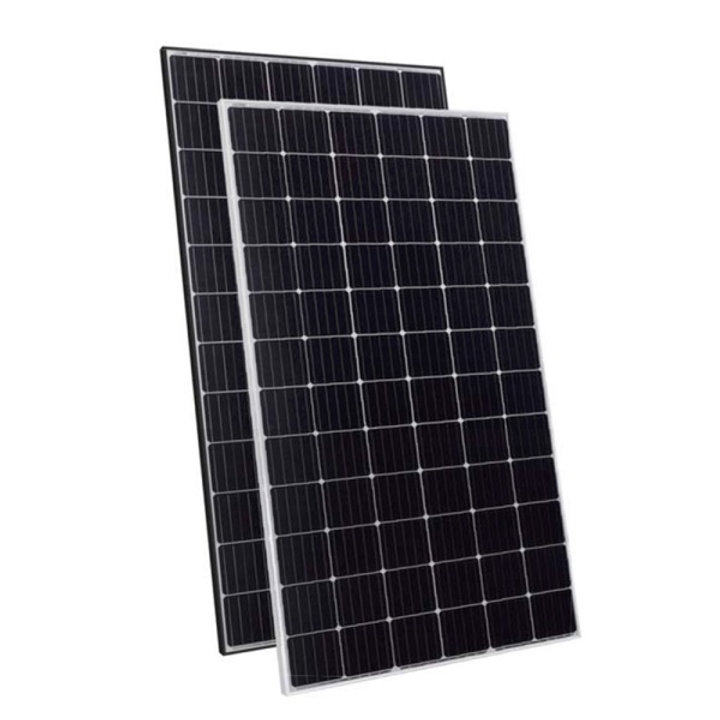

Era Solar 300W Monocrystalline Panel

Description

Espsc 300 monocrystalline solar module High-qualitywith 60 cells and 3 bypass diodes in power classes 300 wp for grid connected systems.ReliableThe high quality level of era solar guarantees long life-time and high earnings.SolidAn aluminium hollow-chamber frame on each side combined with low-iron and tempered solar glass ensures high load capacity resistance.Performance guaranteeEra solar grants a power guarantee of 90% of nominal power output up to 10 years and 80% up to 25 years.

DC Electrical Characteristics

STC Power Rating 340W
PTC Power Rating 313.26W 1
STC Power per unit of area 175.2W/m2 (16.3W/ft2)
Peak Efficiency 17.52%
Power Tolerances 0%/+3%
Number of Cells 72
Nominal Voltage not applicable
Imp 8.79A
Vmp 38.7V
Isc 9.24A
Voc 47.1V
NOCT 45°C
Temp. Coefficient of Isc 0.05%/K
Temp. Coefficient of Power -0.39%/K
Temp. Coefficient of Voltage -0.137V/K
Series Fuse Rating 15A
Maximum System Voltage 1500V
Mechanical Characteristics

Type Mono PERC

Output Terminal Type Multicontact Connector Type 4
Output Cable Wire Gauge 12 AWG
Output Cable Wire Type PV Wire
Output Cable Wire Length 900mm (35.4in)
Frame Color Clear
Backsheet Color White
Length 1,956mm (77in)
Width 992mm (39.1in)
Depth 40mm (1.6in)
Weight 26.5kg (58.4lb)
Installation Method Rack-Mounted
Warranty and Certifications

80% Power Output Warranty Period 25yrs
90% Power Output Warranty Period 12yrs
Workmanship Warranty Period 10yrs
UL 1703 Fire Classification data not available
Compliances IEC 61215, IEC 61730, TUV
CSI Listed No
